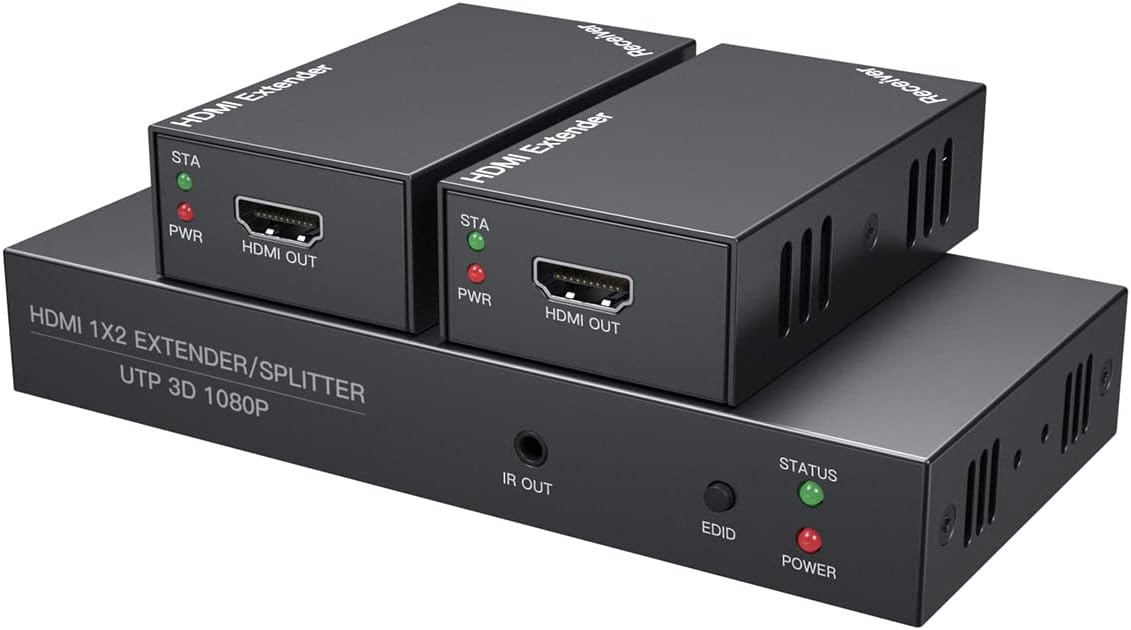

HDMI Extender Splitter 1080P 2 Way 50m Over Ethernet with IR Return O83129
HDMI Extender Splitter 1080P 2 Way 50m Over Ethernet with IR Return O83129
【 One Transmitter + 2 Receivers + IR 】 Split audio and video into 2 channels of the same signal for long distance transmission. One-way infrared (20-60KHz), can control signal source at the remote receiving end.
【 HDMI Over Ethernet 】 Up to 50m/165ft by Cat6/7, 45m/147ft by Cat5e, 40m/131ft by Cat5. High-quality cables are essential for stable signals and long-distance transmission.
【 Full HD 1080P 】 Up to 1920x1080P@60Hz, high-definition picture, clearer and more eye-catching. Also compatible with 3D signals and other 1080i/720p resolutions.
【 Simpler Connection 】 Power over cable, only one power adapter is needed to get the device running completely.
【 Application 】 Mainly used in engineering, security, exhibitions, home audio&video, etc.
HDMI Extender Splitter
Features
Support maximum 165ft/50m audio video signal transmission.
Support 2 local TVs and 2 remote TVs.
Support IR return to the signal source.
Support POC, only connect the power adapter to the transmitter.
Highest Specifications
HDMI 1.3
HDCP 1.2
1920x1080P@60Hz resolution, compatible with 3D
Package Contents
1x HDMI Transmitter
2x HDMI Receiver
1x TX Cable (3.5mm jack, 20-60KHz frequency)
2x RX Cable (3.5mm jack, 20-60KHz frequency)
1x Power adapter
1x User manual
Connection instructions
Input devices: PC, laptop, camera, signal box, etc.
Output device: TV, monitor, projector, etc.
HDMI cable: HDMI 1.3 (at 1080P@60Hz), within 10 ft.
Ethernet cable: Cat6/7 within 50m/165ft, Cat5e within 45m/147ft, Cat5 within 40m/131ft.
Ethernet cable RJ45 wiring sequence: T568B (white orange, orange, white green, blue, white blue, green, white brown, brown)
Remind
1） Directly connect your signal source and monitor before connecting HDMI Extender, and check the signal status.
2） The red light is the power light, and the green light is the signal light. It is recommended to use 2 Ethernet cables for testing if there is no signal.
3） RJ45 requires the conventional T568B standard. Need to change the wiring sequence if you are using T568A.
