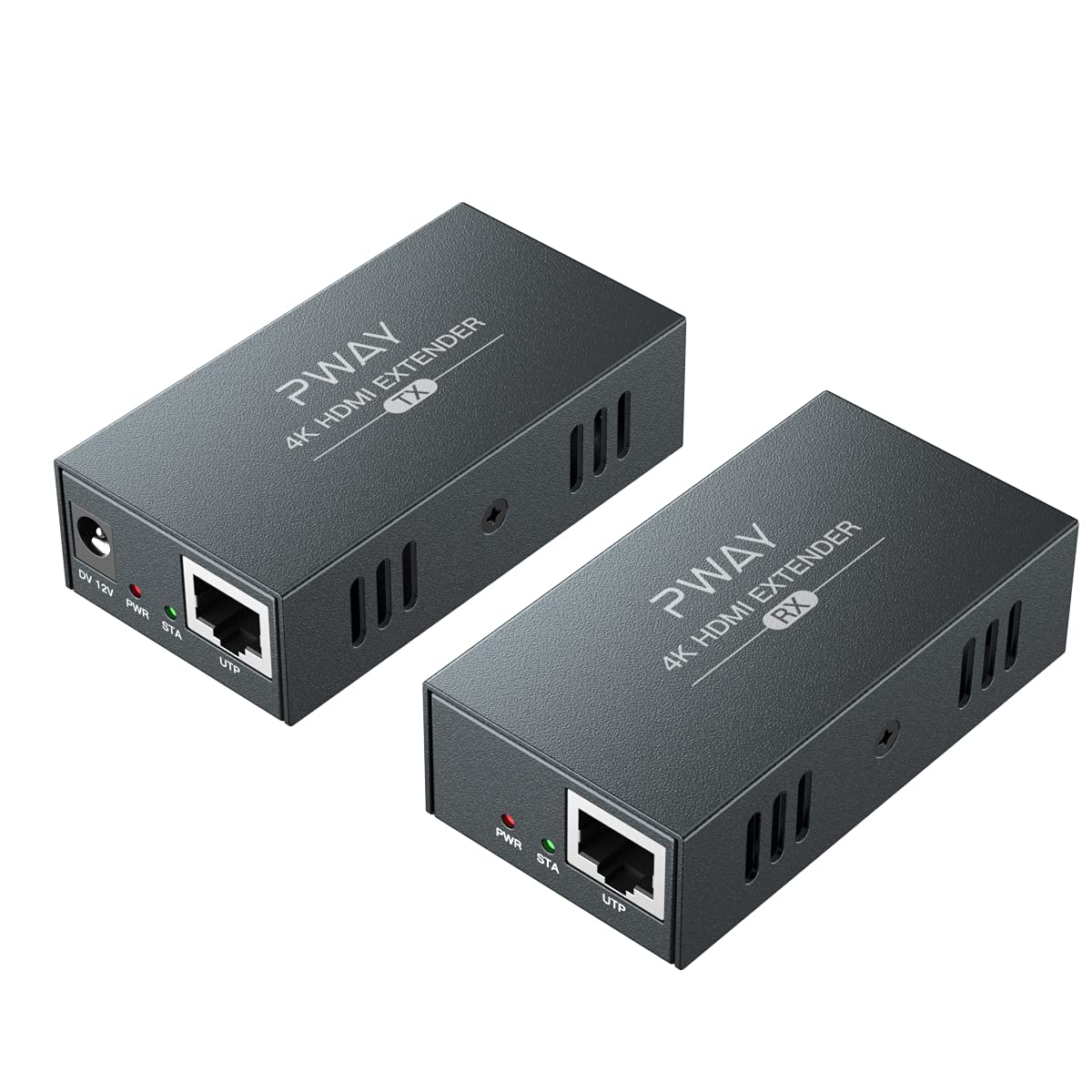

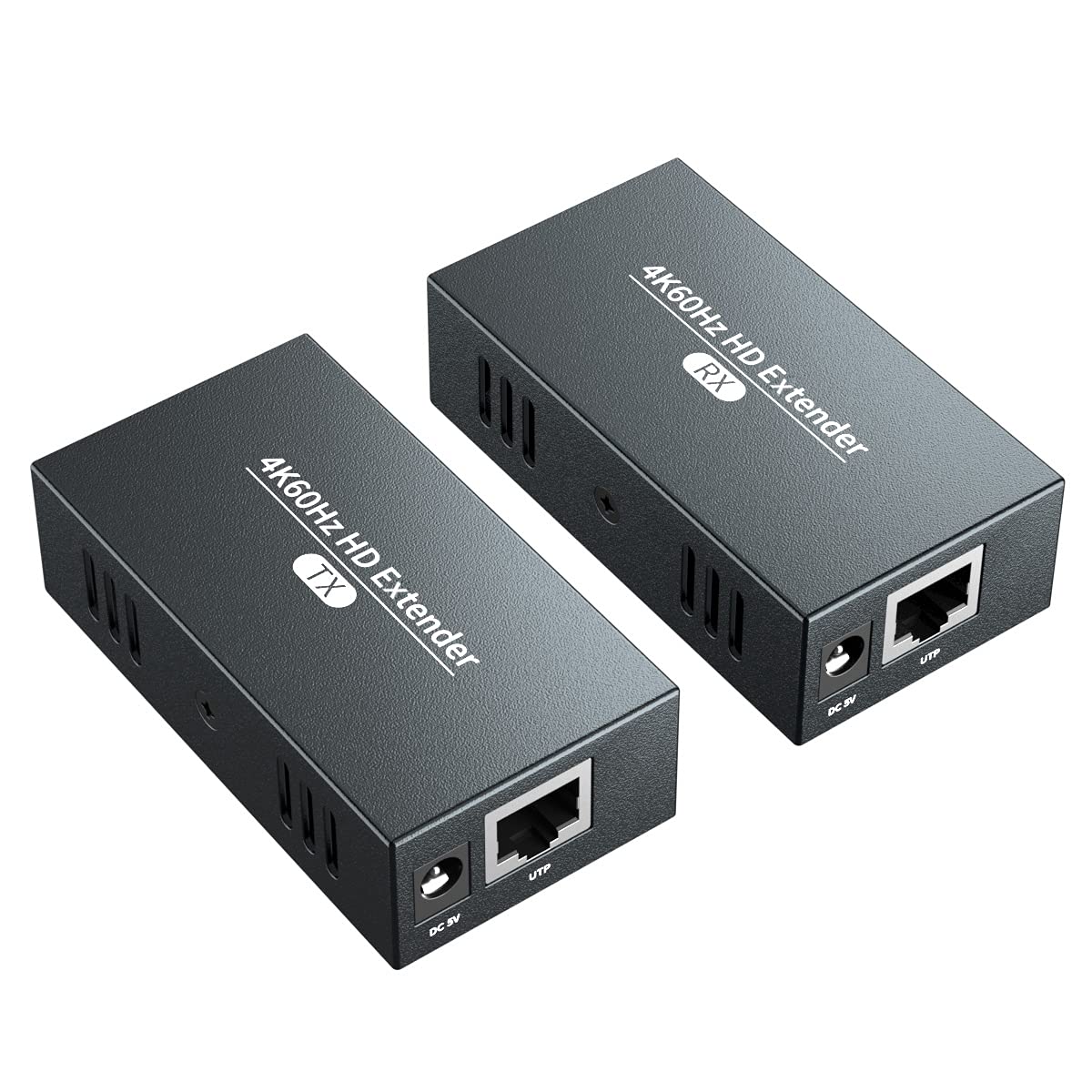

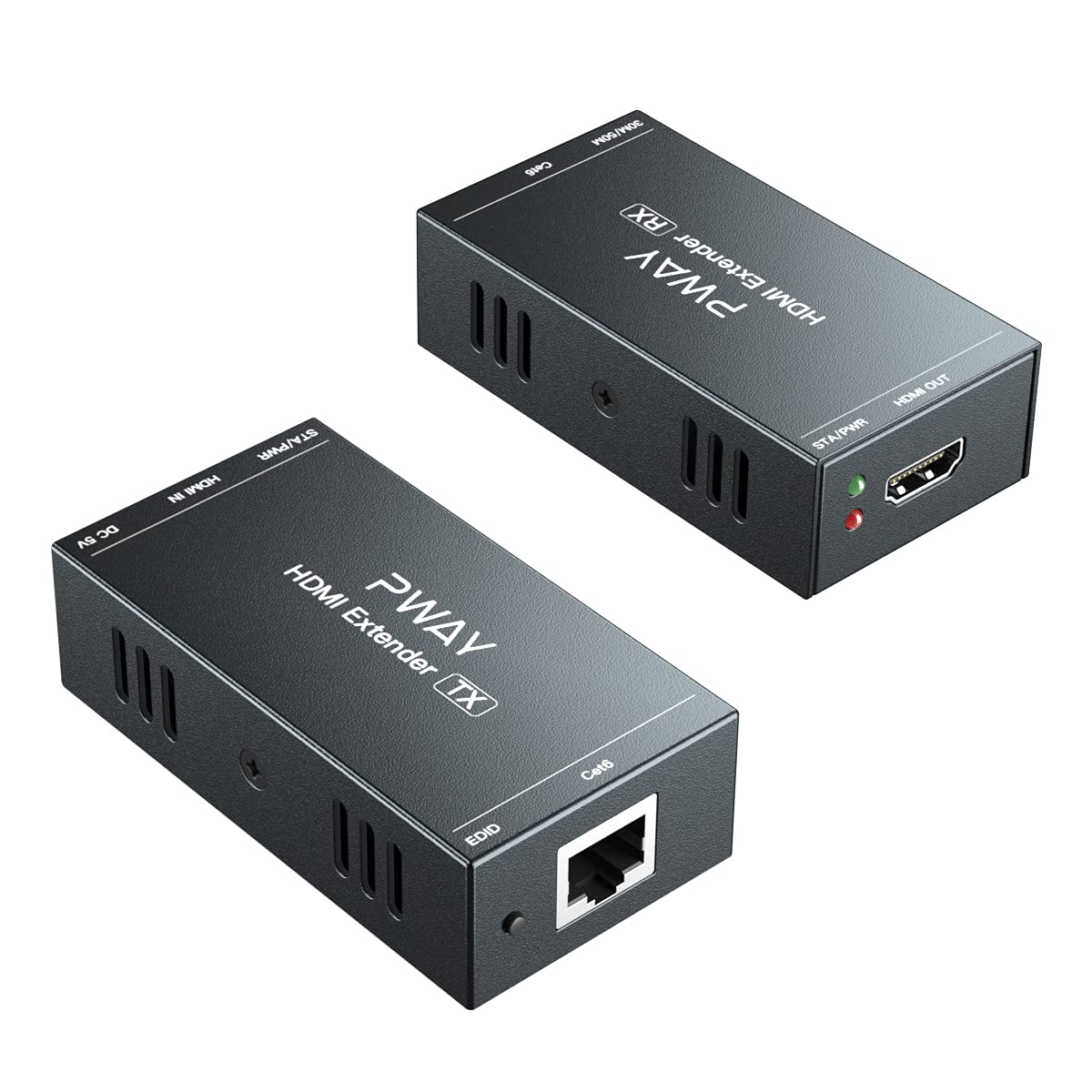

HDMI Extender Over Cat5e/6 N52414
HDMI Extender Over Cat5e/6 N52414
HDMI 4K OVER ETHERNET. Extend 4K@30Hz max 100 meters by Cat6/7, 80 meters by Cat5e, and 60 meters by Cat5.
HDMI HD VIDEO EXTENDER. It runs max resolution of 4K@30Hz, smooth and delicate image allows you enjoy high-definition video.
POWER OVER ETHERNET CABLE. Just need to connect the transmitter with a power adapter, simpler wiring
HIGH COMPATIBILITY. EDID settings are applicable to various devices, such as computers, laptops, cameras, TV boxes, players, TVs, monitors, etc.
MULTI PURPOSE. It is suitable for monitoring system, church TV, conference video, home audio and video, school activities, etc.
HDMI 4K@30Hz Extender by Cat5e/6/7/8
Do some checks before installation:
1. Set the output resolution of your signal source not higher than TV, and set the max resolution not higher than 3840*2160@30Hz (4K@30Hz).
2. Connect your devices directly and check if they have image output (without HDMI extender).
SPECIFICATIONS
1.Video
* HDMI 1.4 cable (HDMI-A), recommended within 10 feet.
* Support input & output max resolution 3840*2160@60Hz, 3D
2.Ethernet
* Support Ethernet interface RJ45;
* Support Ethernet crimping method 568B (white orange, orange, white green, blue, white blue, green, white brown, brown), not 568A;
* Recommended Ethernet cable length Cat5---196ft (60m), Cat5e---262ft (80m), Cat6/7/8---328ft(100m);
3.Others
* Max working voltage: 1A/12VDC;
* Operating Temperature range: (-5 to +70��);
* Dimension (L x W x H): 81*43*23 (mm);
4.How to set EDID.
If this device can't recognize your TV's EDID during the first connection, set the following settings please.
(1) Connect the TV to the HDMI IN on Transmitter(TX).
(2) Connect the power supply to Transmitter.
(3) Hold EDID button for 3-5 seconds. Green light stops flashing, indicating EDID copy is complete.
5.Package Lists
1x Transmitter
1x Receiver
1x Power adapter
1x User manual
1x After-sale card
