Solar Charge Controller 40A MPPT 12V 24V 48V Auto Identification 150V 2240W I18463
Sale price
$28.99
Regular price $107.43
Skip to product information
【MPPT Solar Charge Controller 40Amp】MPPT algorithm technology is used to tracking the maximum power point of solar power generation in real-time which with high tracking efficiency of up to 99% and a peak conversion efficiency of 98%. Ultra-fast tracking speed, tracking 1 time per second. The max. PV input voltage is 150V(Voc).
【Max PV Power】560W panels on 12V battery system, 1120W panels on 24V battery system, 2240W panels on 48V battery system.
【Intelligent Battery System Voltage Recognition】12-24-48V battery system auto recognition to keep the charge controller can charge 12V, 24V or 48V battery system. The MPPT solar charge controller can be wildly used in (Home/Camp/RV/trailer/Marine/Boat).
【The Batteries Types Can be Supported】Garnde Rosefinch series MPPT Solar charge controller can support lead-acid batteries, gel batteries, flooded batteries and lithium batteries.

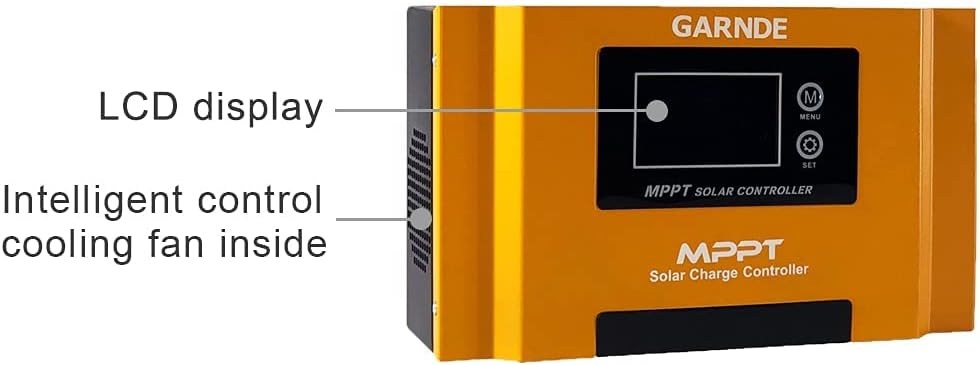

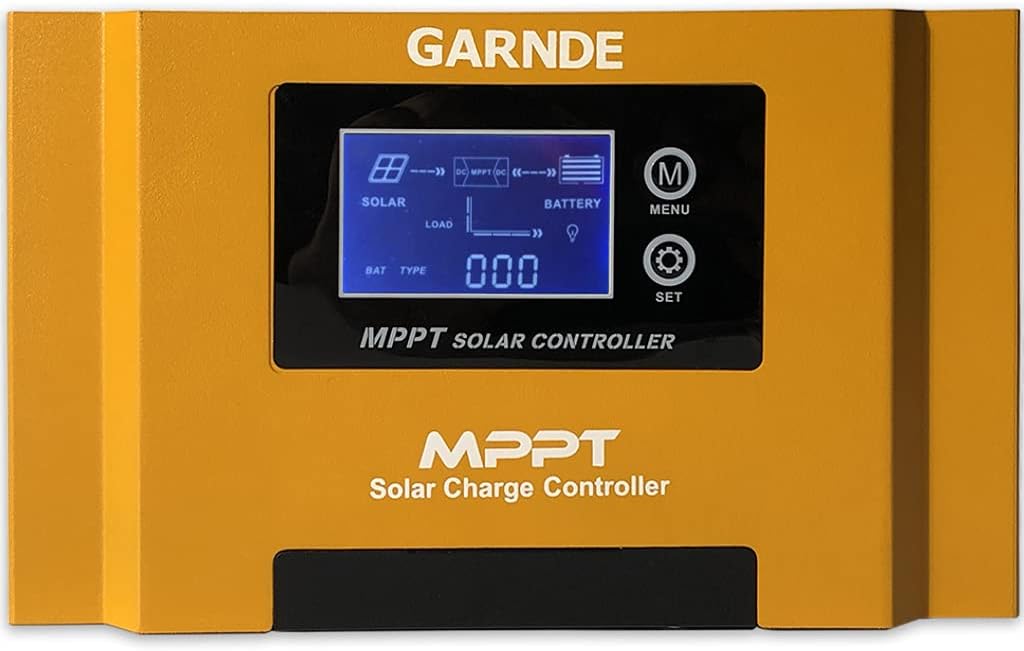

【Intelligent Adjustable LCD Screen】Major parameters can be displayed on the screen which will be clearer for you to operate, such as power generation data.
Solar Charge Controller 40A MPPT 12V 24V 48V Auto Identification 150V 2240W I18463
Sale price
$28.99
Regular price $107.43
Shipping calculated at checkout.
【MPPT Solar Charge Controller 40Amp】MPPT algorithm technology is used to tracking the maximum power point of solar power generation in real-time which with high tracking efficiency of up to 99% and a peak conversion efficiency of 98%. Ultra-fast tracking speed, tracking 1 time per second. The max. PV input voltage is 150V(Voc).
【Max PV Power】560W panels on 12V battery system, 1120W panels on 24V battery system, 2240W panels on 48V battery system.
【Intelligent Battery System Voltage Recognition】12-24-48V battery system auto recognition to keep the charge controller can charge 12V, 24V or 48V battery system. The MPPT solar charge controller can be wildly used in (Home/Camp/RV/trailer/Marine/Boat).
【The Batteries Types Can be Supported】Garnde Rosefinch series MPPT Solar charge controller can support lead-acid batteries, gel batteries, flooded batteries and lithium batteries.
【Intelligent Adjustable LCD Screen】Major parameters can be displayed on the screen which will be clearer for you to operate, such as power generation data.
| 30A MPPT Solar Charge Controller | 40A MPPT Solar Charge Controller | 50A MPPT Solar Charge Controller | 60A MPPT Solar Charge Controller | |
|---|---|---|---|---|
| Norminal Systm Voltage | 12/24/48V DC | 12/24/48V DC | 12/24/48V DC | 12/24/48V DC |
| Max. Charging Current | 30A | 40A | 50A | 60A |
| PV Max. Input Voltage | 150V(Voc) DC | 150V(Voc) DC | 150V(Voc) DC | 150V(Voc) DC |
| PV Max. Input Power | 420W/12V; 840W/24V; 1680W/48V | 560W/12V; 1120W/24V; 2240W/48V | 700W/12V; 1400W/24V; 2800W/48V | 840W/12V; 1680W/24V; 3360W/48V |
| LCD Display | ✓ | ✓ | ✓ | ✓ |
| Intelligent Protection | ✓ | ✓ | ✓ | ✓ |
| Intelligent Control Cooling Fan | ✓ | ✓ | ✓ | ✓ |
| Mounting Method | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
