Aluminum Radiator for Ford Pickup Truck G4091
Aluminum Radiator for Ford Pickup Truck G4091
All-aluminum 3-row core construction includes high-pressure rad cap and magnetic drain plug
The cooling shroud, designed with louver to direct airflow, improving heat rejection
Stronger & higher capacity for coolant than stocks, Exclusive tube design that dramatically increases 30% cooling
Has undergone thorough inspection to guarantee consistent, lasting performance
Gentle hint: Your item will be shipped out within 1 day from our USA warehouse(city of industry, nashville and wolton), faster fulfillment by us and 3-6 days will be delivered

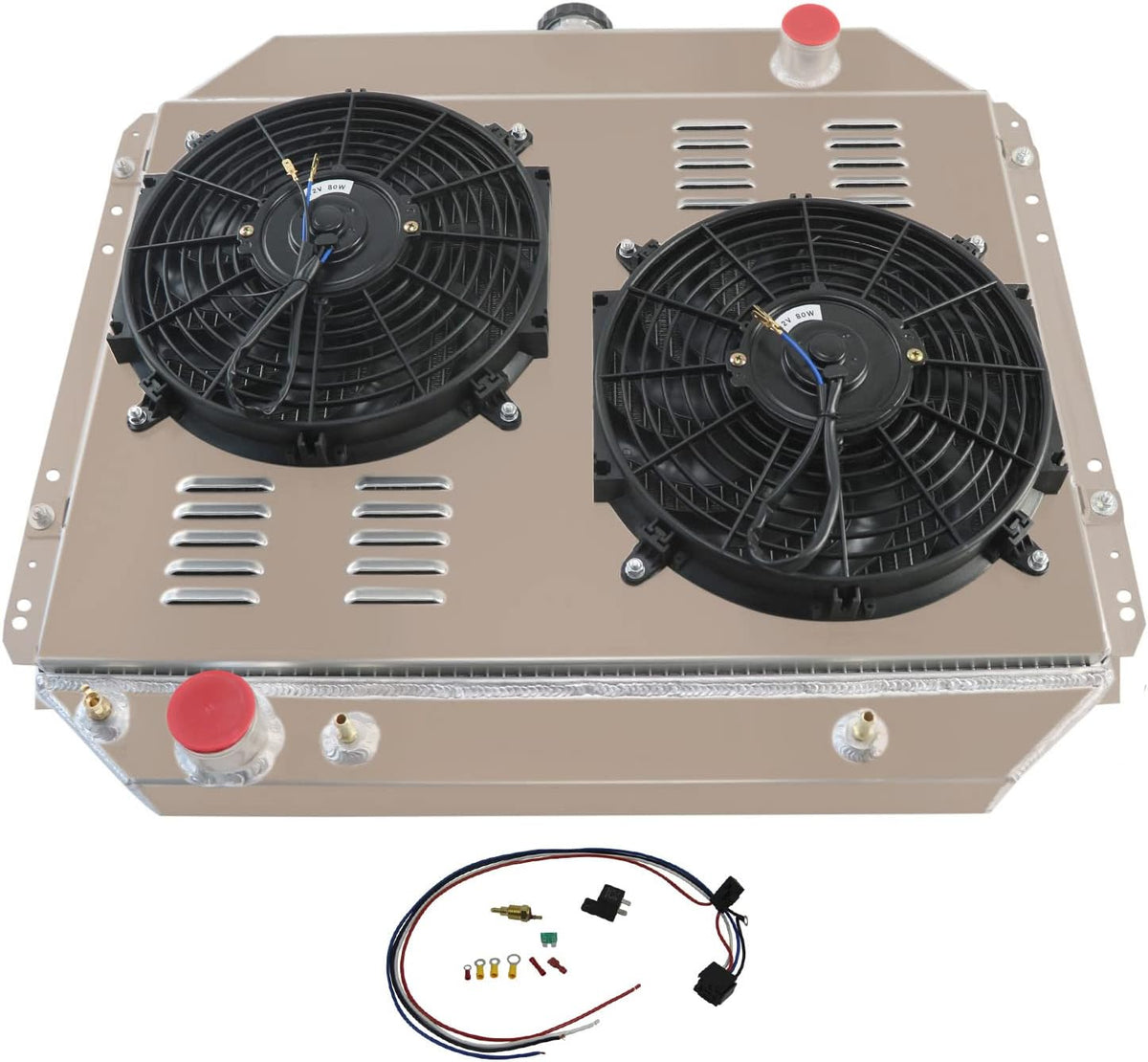

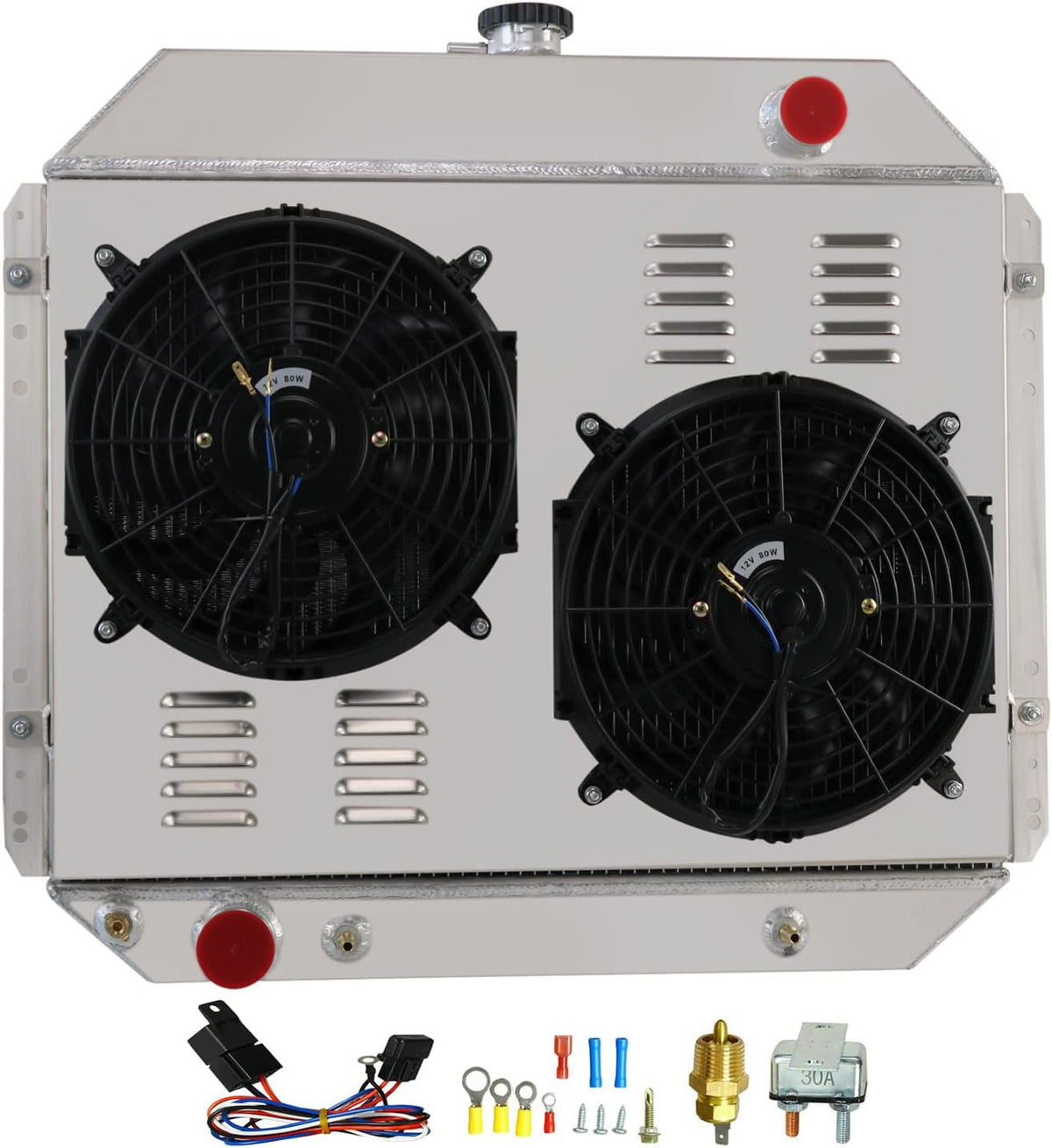

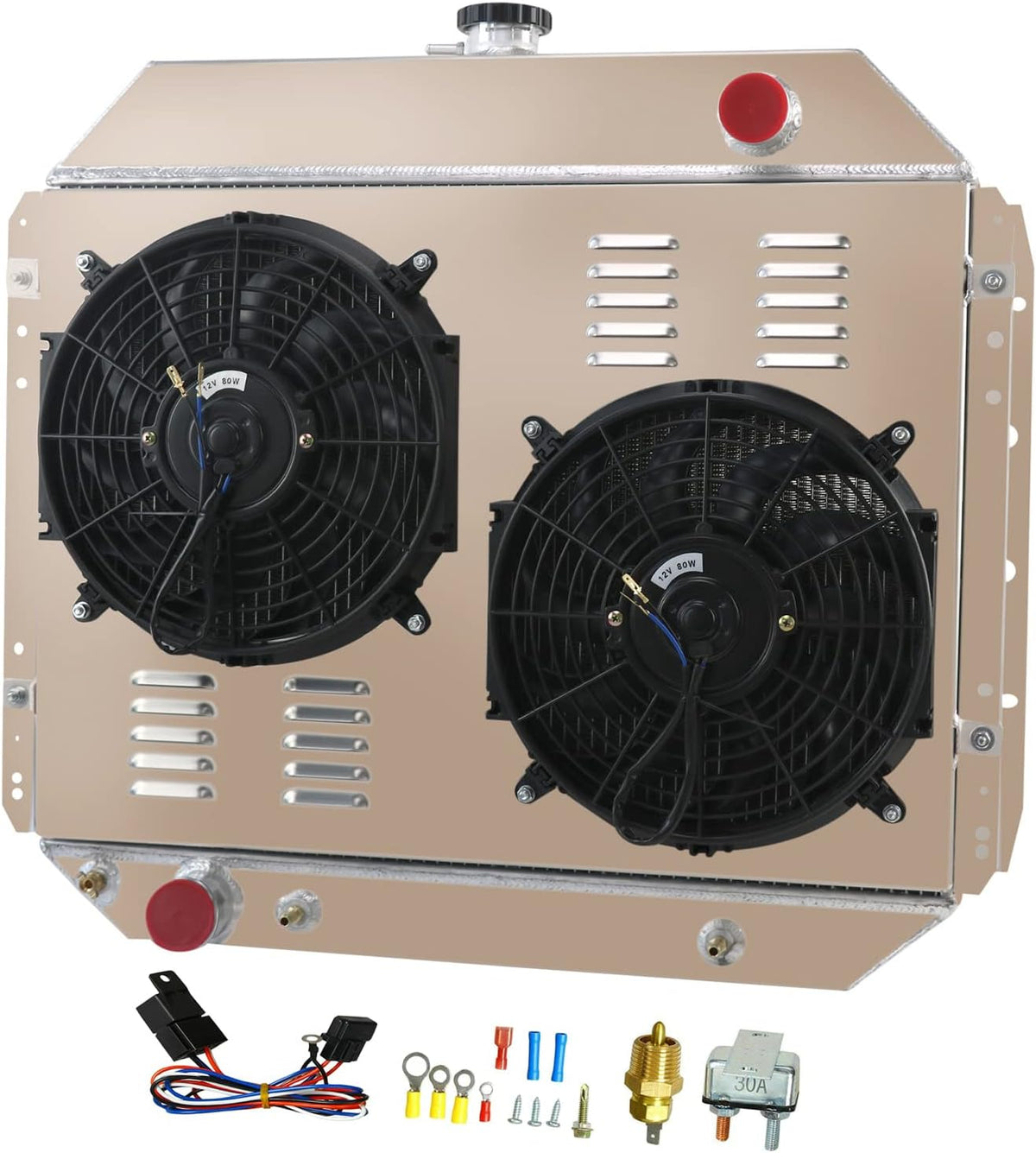

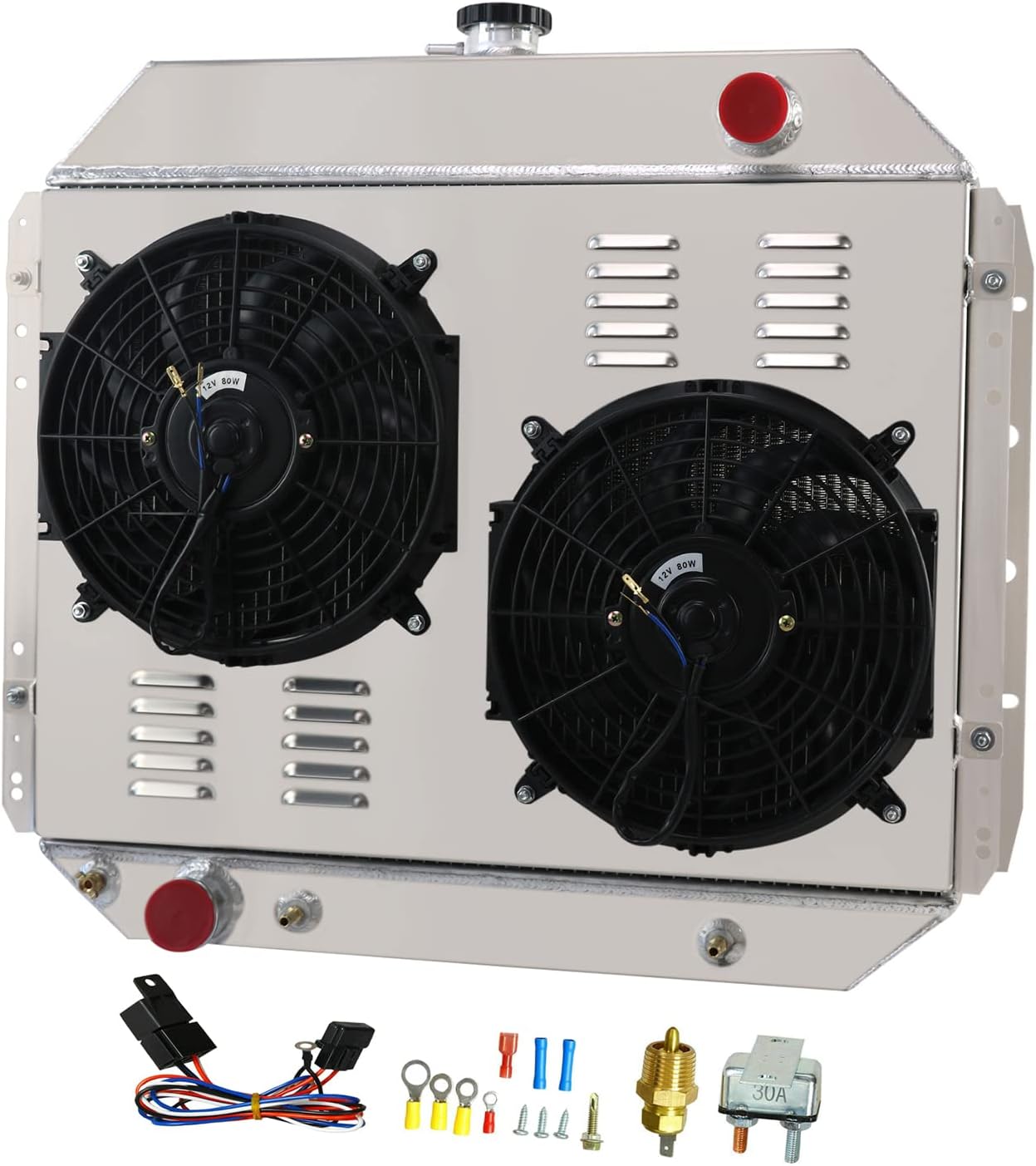

This Listing Including:
1 * 3 row aluminum radiator
1 * aluminum shroud
2 * 12' fans (Including mounting kits)
1 * thermostat relay kit

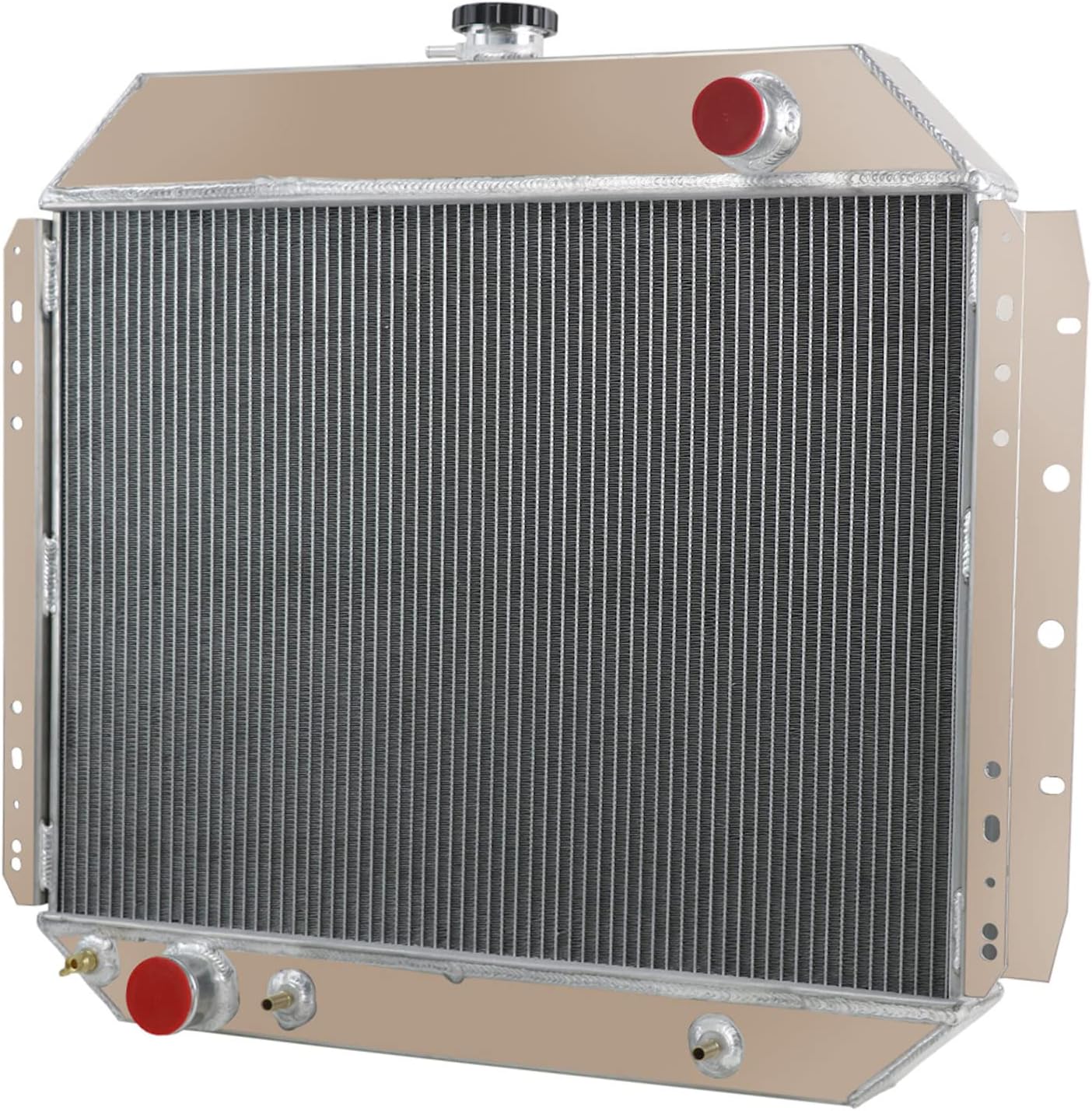

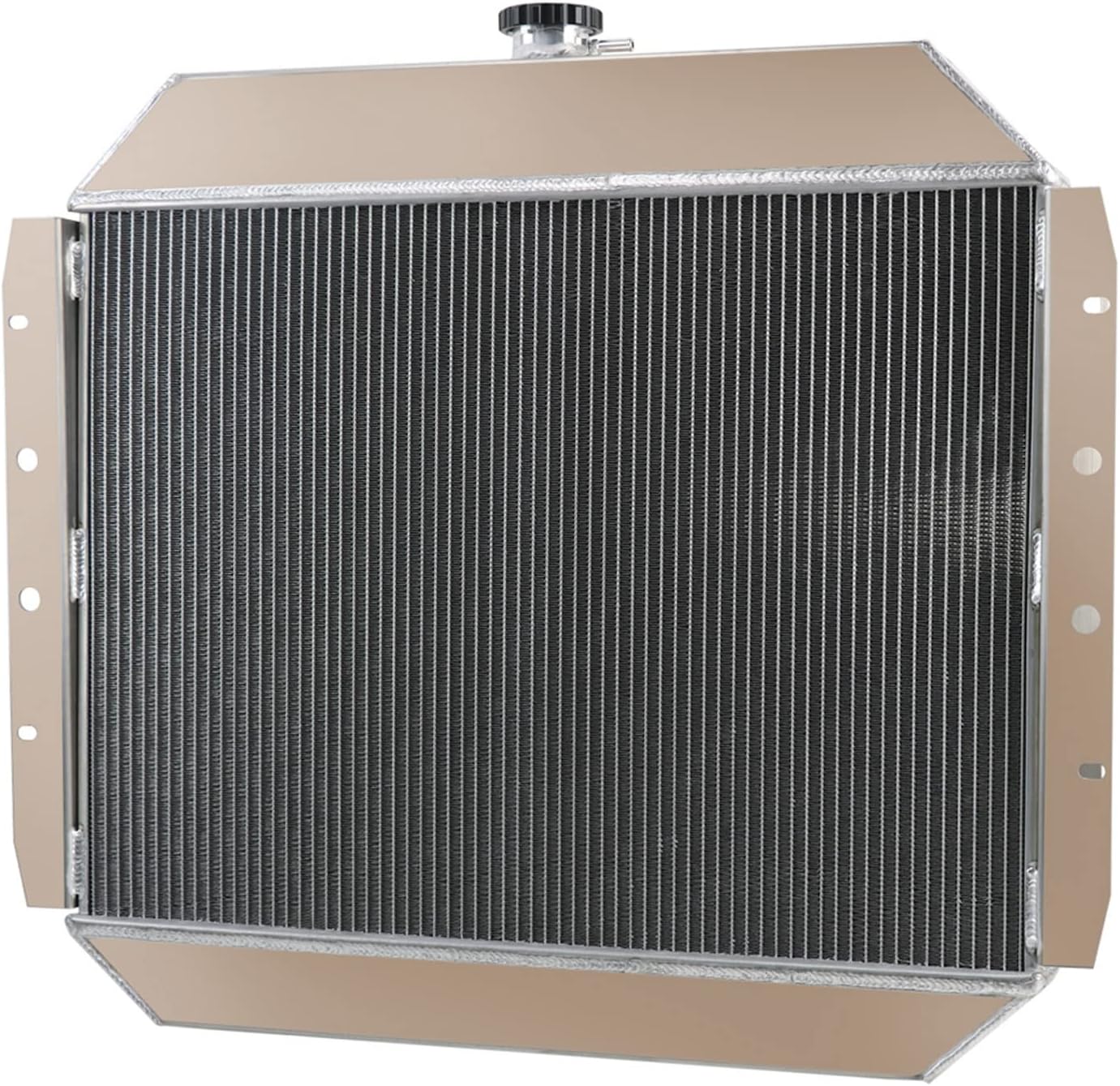

Radiator Specs:
Core Material: aluminum
Tank Material: aluminum
Core Size: 18.9’’ x 25.9’’ x 1.73’’
Overall Size: 26.2’’ x 29.5’’
Inet/Outlet: 1.75’’ / 2’’
Engine Oil Cooler: NO
Trans Oil Cooler: Included
Flow Type: downflow
Mounting Type: bracket
Radiator Cap: included
Fan Specs:
Maximum CFM: 2300±200
Diameter: 12.05' X 12.05' X 2.5'
Number of Blades: 10 blades (Plastic)
Amp Draw: 12.70 amps
Maximum RPM: 2,250 rpm

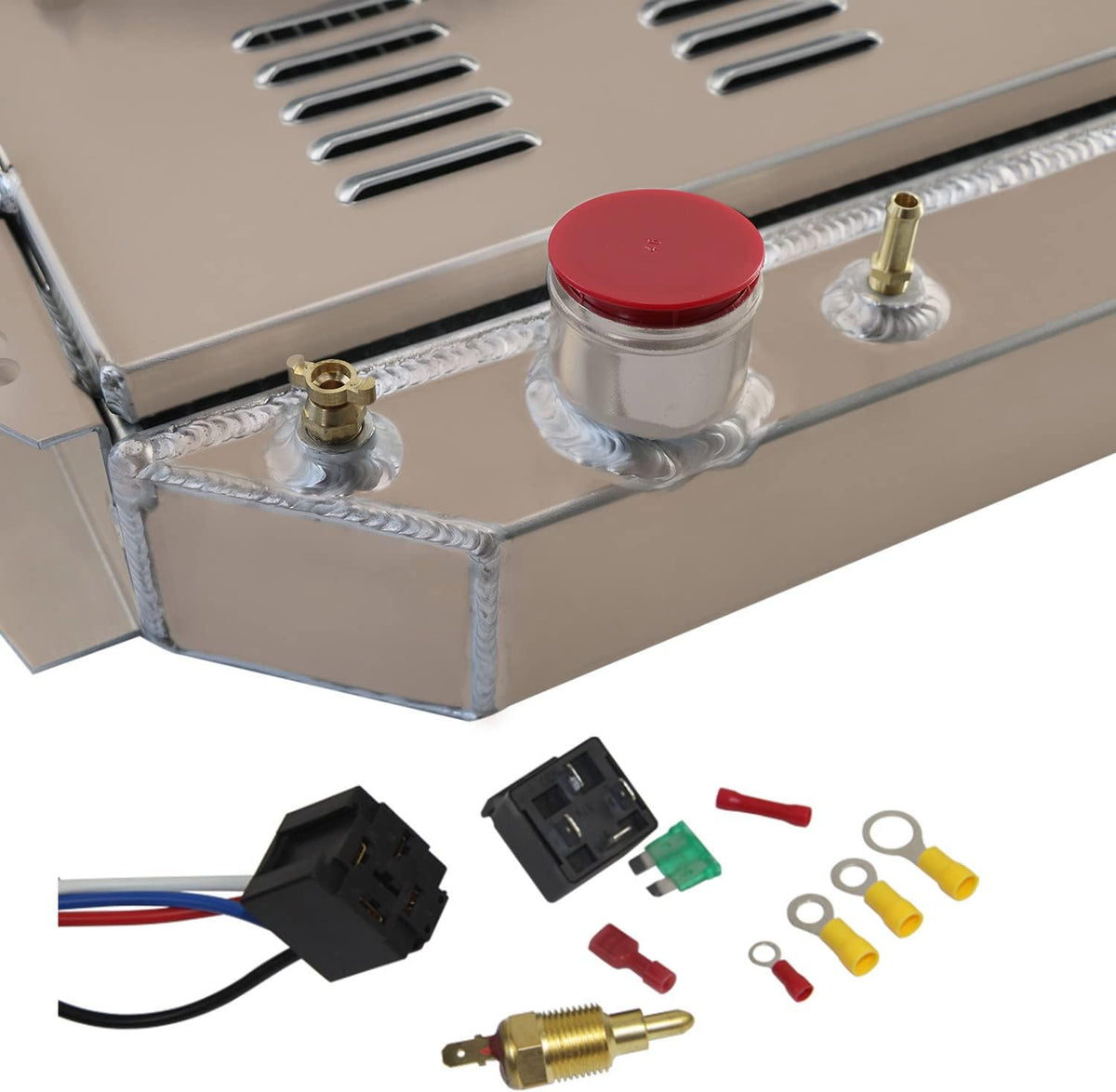

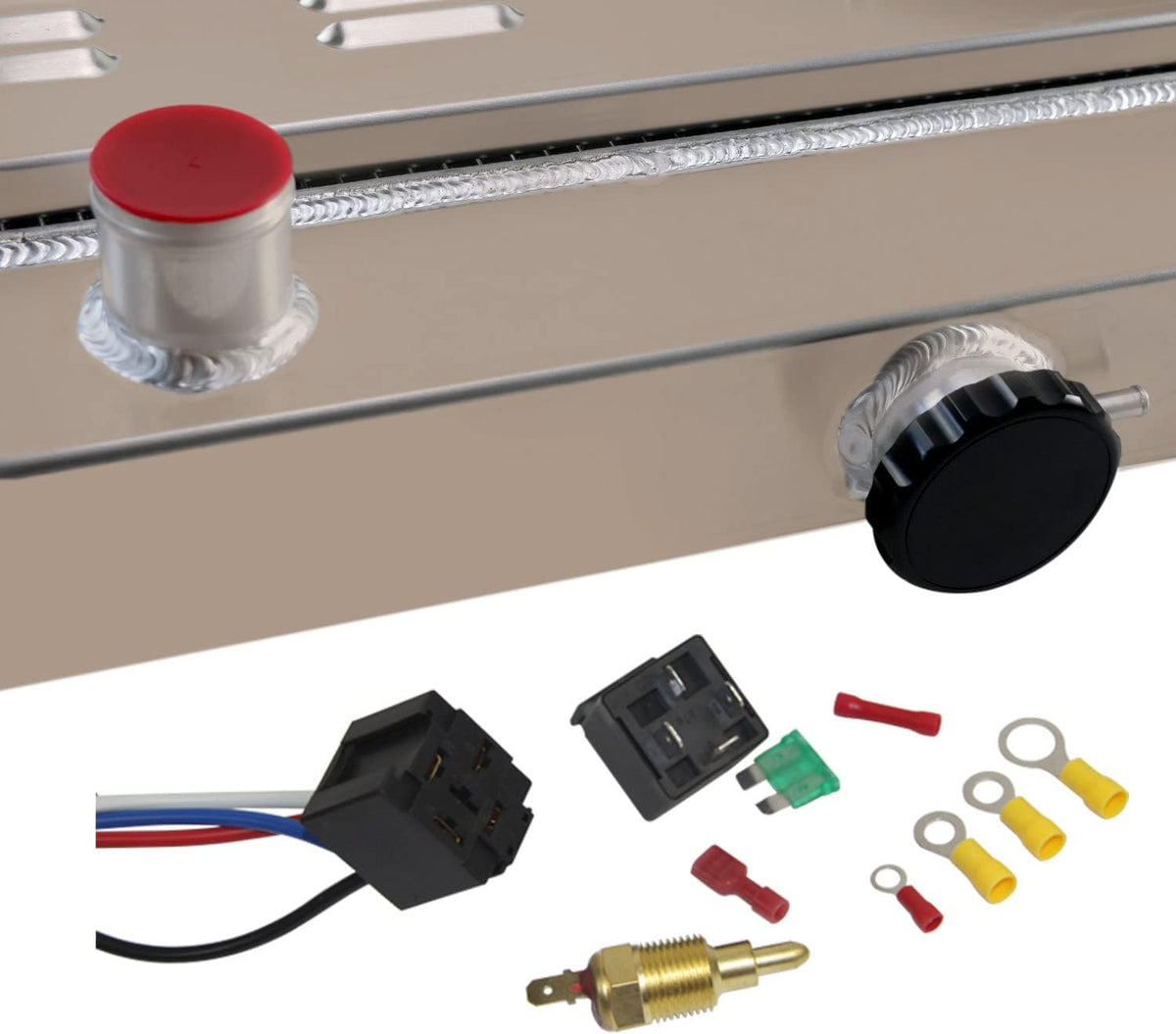

Relay Instruction:
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
This Radiator Compatible with:
Ford Bronco 2.8L L6, 1966-1972
Ford Bronco 3.3L L6, 1973-1974
Ford Bronco 3.9L L6, 1966-1967
Ford Bronco 4.7L V8, 1966-1968
Ford Bronco 5.0L V8, 1968-1977
Ford Bronco 5.8L/6.6L V8, 1978-1979
Ford F100/F250/F350 3.9L L6, 1966-1974
Ford F100 4.7L V8, 1966-1972
Ford F100/F250/F350 4.9L L6, 1966-1979
Ford F100 5.0L V8, 1969-1979
Ford F100/F250/F350 5.8L V8, 1966-1967, 1977-1979
Ford F100/F250/F350 5.9L V8, 1966-1976
Ford F100/F250/F350 6.4L V8, 1968-1976
Ford F100/F150/F250/F350 6.6L V8, 1977-1979
Ford F100 7.5L V8, 1973-1974, 1979
Ford F150 4.9L L6, 1975-1979
Ford F150 5.0L/7.5L V8, 1975-1979
Ford F150 5.8L V8, 1977-1979
Ford F150 5.9L/6.4L V8, 1975-1976
Ford F250 5.0L V8, 1969-1974, 1977-1978
Ford F250/F350 7.5L V8, 1973-1979
Ford F350 5.0L V8, 1966-1979
Ford F500 6.4L V8, 1976
PLS check core/overall/inlet/outlet SIZE carefully before you order.
